Product Detail

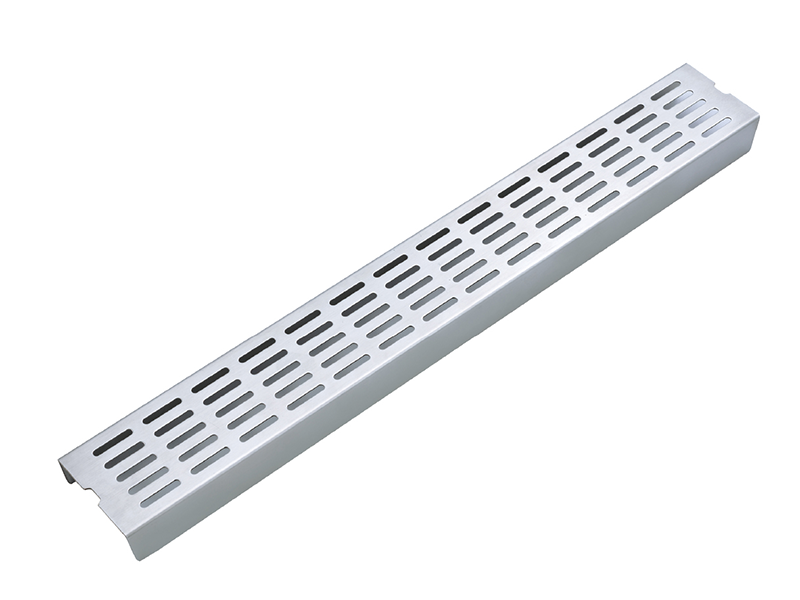

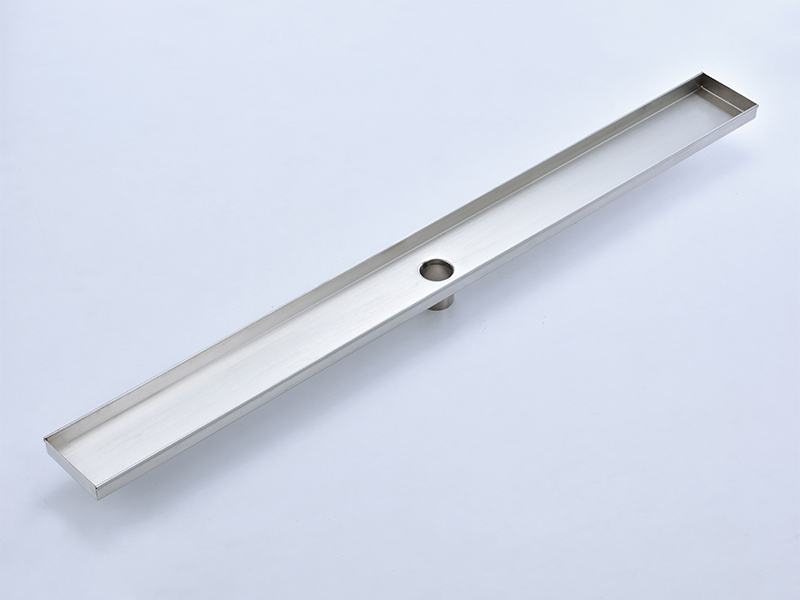

Shower Linear Drain -Rectangle Type
- Item Number: 186579
- Product Category: Linear drain - SG series
Description
Model Number/ : SG-85600-05
Material/ : SUS304 / SUS316
Surface Traerment/ : Brush, Mirror / Polish
Specification/ :
- Width : 85mm ~ 100mm
- Length : 600mm ~ 1500mm
- Height : 20mm
Outlet : ∮2"
Service/ : OEM /ODM
Full Description
Full Description
| Item NO. | W | L | H |
| SG-85600 | 85 | 600 | 20 |
| SG-85800 | 85 | 800 | 20 |
| SG-850900 | 85 | 900 | 20 |
| SG-851000 | 85 | 1000 | 20 |
| SG-851200 | 85 | 1200 | 20 |
| SG-851500 | 85 | 1500 | 20 |
| SG-100600 | 100 | 600 | 20 |
| SG-100800 | 100 | 800 | 20 |
| SG-100900 | 100 | 900 | 20 |
| SG-1001000 | 100 | 1000 | 20 |
| SG-1001200 | 100 | 1200 | 20 |
| SG-1001500 | 100 | 1500 | 20 |
Unit：m/m
Other Descriptions

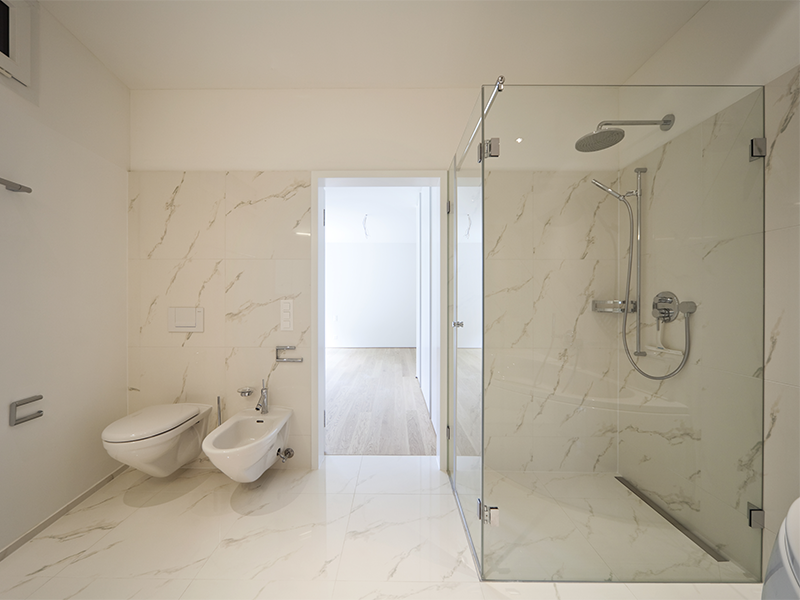

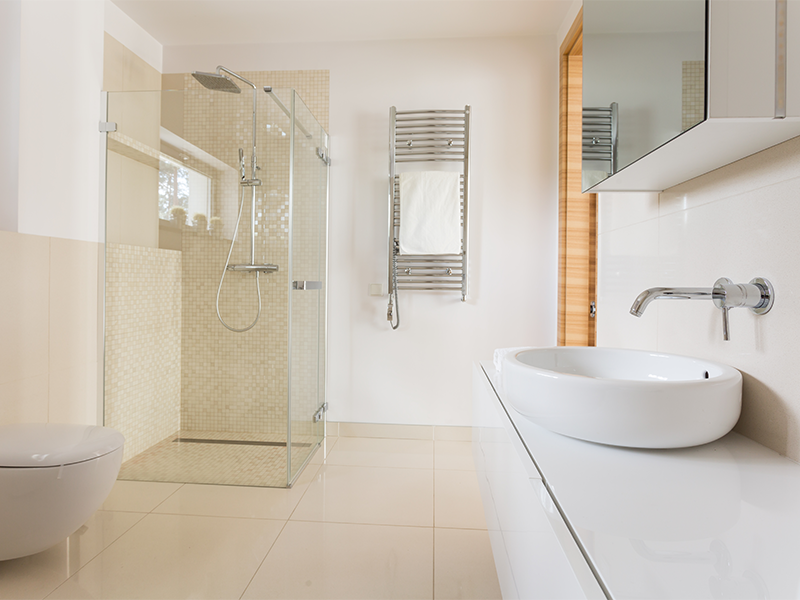

Our stainless steel shower drains offer the unique and largest product range in different type that are perfect for small and large-sized of shower floors with various – also tileable – surfaces. With the modern and timeless design grates, you have the opportunity to personalize your shower sensation. All our shower drains are easy to clean and can be placed almost anywhere in the shower: free in the floor, against the wall or at the entrance. Shower drains available for every type of bathroom and installation situation, whether it’s new construction or renovation
